A Guide to Elevations in Architecture

Ever wondered how architects show what a building will look like from the outside? They use elevations in architecture. You can think of it as a building's official portrait—a completely flat, straight-on view of one of its faces, with no perspective to trick the eye.

What Are Elevations in Architecture

Imagine you could take a building and flatten it like a cardboard box. Each side you lay down would give you a perfect, head-on view of that face. That’s pretty much what an architectural elevation is. It's a 2D drawing that shows one façade without any of the distortion you'd get from a photo or a 3D model. This approach is all about precision, giving a crystal-clear picture of the building's exterior.

Unlike a floor plan, which is like slicing a building horizontally to look down from above, an elevation is a vertical slice seen from the outside. It’s the main way architects communicate everything about the external appearance, from the peak of the roof down to the style of the windows and the texture of the materials.

The Blueprint for a Building's Character

At its heart, an elevation drawing is a powerful communication tool. It translates complex design ideas into a universal visual language that builders, clients, and planning authorities can all get on board with. Honestly, trying to build something accurately without one would be a bit of a nightmare.

Key information you'll find on an elevation includes:

• Vertical Heights: How tall are the floors, windows, and rooflines?

• Material Finishes: What are the walls made of? Brick, stone, or siding?

• Architectural Style: Does the building have a modern, traditional, or classical feel?

• Fenestration: Where are the doors and windows placed, and what's their design?

This level of detail is crucial for making sure the final structure lines up perfectly with the original vision. If you're curious about how these initial ideas take shape, you can explore the fundamental architectural design concepts that underpin every project.

An elevation isn't just a technical drawing; it’s the first real glimpse of a building's personality. It sets the tone, defines the aesthetic, and tells the story of how the structure will sit in its environment.

Ultimately, elevations are the bridge between imagination and reality. They provide a clear, unambiguous guide that ensures everyone on the project is working from the same script. This clarity is what prevents expensive mistakes and misinterpretations during construction, making elevations one of the most vital documents in any set of architectural plans. It's the design's promise of what's to come, laid out in black and white.

Exploring the Main Types of Building Elevations

Think of a building like a person. It has different sides, and each side tells you something different about its character. In architecture, we use specific drawings called elevations to capture these "faces." Getting to grips with these different elevations in architecture is like learning to read the building's whole story, not just the first page.

While you might see the four main types named after compass points (like North or South Elevation), it's far more common to hear them described by what they do.

The Front Elevation: The Public Face

The front elevation is the main event. It's the view that greets you from the street, the one that makes the first impression. This drawing is all about curb appeal and sets the tone for the entire structure's style.

It's basically the cover of the book. Designers pour a ton of effort into the front elevation, detailing everything from the main entrance and statement windows to the unique architectural flourishes that give the building its personality. If you're looking for inspiration on how to make a real impact, checking out some of the latest front elevation designs is a great place to start.

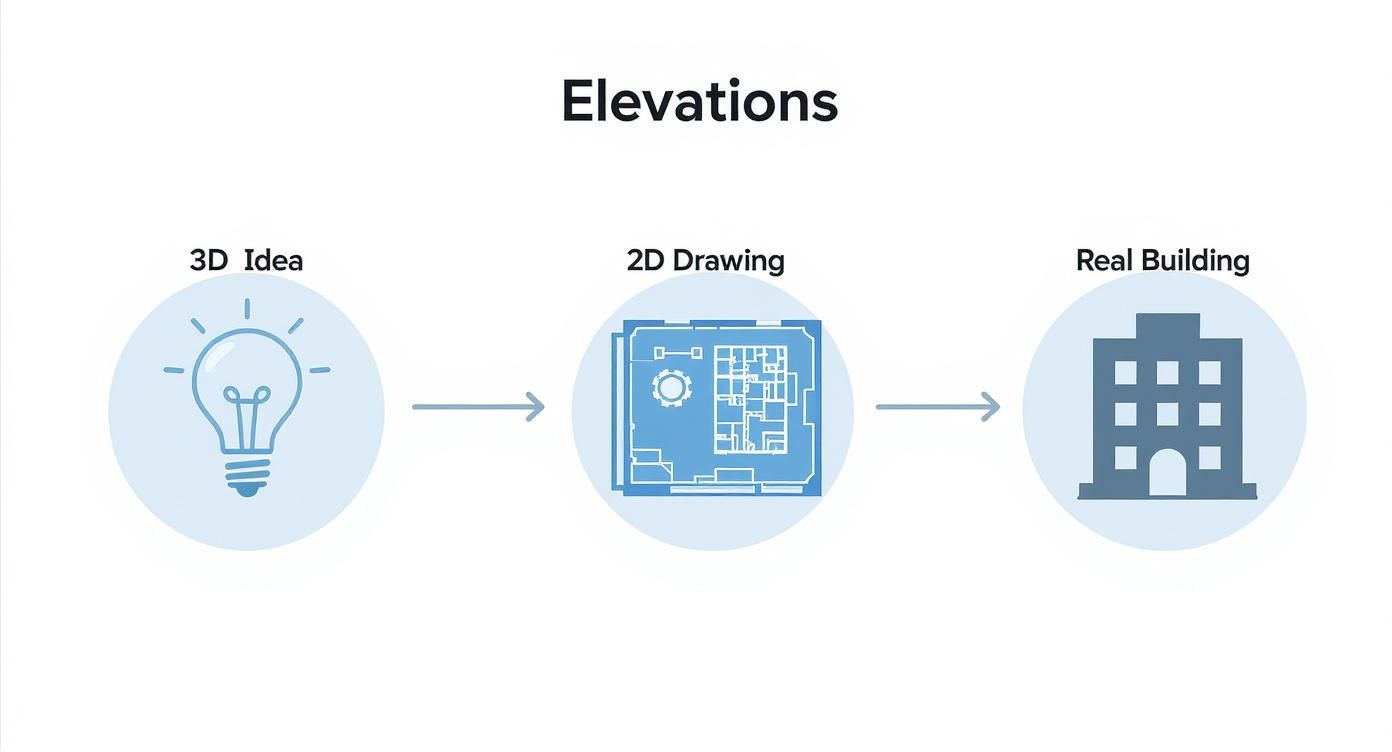

This infographic really captures that journey from a simple idea to a finished building, showing how 2D elevations act as that crucial bridge.

It’s a perfect visual of how these flat drawings translate a 3D vision into a practical guide that builders can actually follow.

Side and Rear Elevations: The Supporting Cast

The front elevation may get all the glory, but the side elevations provide the backstory. They reveal the building's depth, show off the roof's shape, and illustrate how the structure sits on its plot of land next to other buildings. These drawings are the transition from the public-facing front to the more private rear.

And speaking of the back, the rear elevation is usually all about function and privacy. This is where you'll find the practical stuff—patio doors, garden access, and utility connections. The design here tends to be simpler, favouring usability over the grand decorative statements of the front.

To help you keep track, here’s a quick breakdown of what each elevation type focuses on.

Key Features Shown In Different Architectural Elevations

This table shows that each view isn't just a different angle; it's a drawing with a very specific job to do.

Putting it all together, the front, side, and rear elevations give you a complete, 360-degree external picture. If you're missing even one, you're leaving a massive blind spot, which can lead to some expensive guesswork on the construction site.

Specialised Elevations for Complex Situations

Of course, not every building is a simple box. Sometimes, unique site conditions or intricate interior designs call for more specialised views.

• Split Elevations: Got a house on a hill? This is the drawing for you. A split elevation is "cut" at different floor levels to show exactly how the building steps down the sloped terrain. It's a lifesaver for tricky foundations.

• Interior Elevations: Now we're moving inside. These drawings focus on a single wall within a room. They’re absolutely essential for getting things right with kitchen cabinets, custom bookshelves, or a fancy bathroom tile design.

Each type of elevation has a clear role, ensuring every detail is communicated from every important angle. It's this level of thorough documentation that allows a project team to take a design from a blueprint to a beautiful, real-world building without any nasty surprises.

How Elevations Shaped Indian Architectural History

Today, we think of architectural elevations as technical drawings—precise and functional. But their real purpose, telling a story, is an ancient art. In India, elevations in architecture have always been a powerful way to communicate big ideas about spirituality, power, and the cosmos, long before modern blueprints were a thing.

Just look at ancient Indian temples. Their iconic, towering spires, known as shikharas, weren't just built to be tall and impressive. Their elevations were carefully designed to act as symbolic bridges, connecting the world of the worshippers on the ground with the heavens above.

This push towards the sky was no accident. The upward sweep of a temple's form was meant to inspire awe, pulling your gaze upward and reinforcing a sense of cosmic order and spiritual longing.

From Modest Forms to Cosmic Mountains

If you trace the evolution of these sacred elevations, you can see a fascinating story of growing architectural ambition and deeper symbolism. The earliest structures were fairly simple in their vertical design, but over time, they became staggeringly complex and grand.

This wasn't just about building bigger for the sake of it; it was about embedding deeper philosophical ideas right into the stone. The history of elevation in Indian temple architecture shows a clear journey from simple, humble heights to massive forms that embodied cosmic and spiritual ideals. During the Gupta period (around 320–550 CE), stone temples with more pronounced elevations became the norm, a clear step toward symbolic verticality. The Dashavatara Temple at Deogarh, for example, has an elevation that reaches about 15 metres.

Fast forward a few centuries, and North Indian temples like the Kandariya Mahadeva Temple at Khajuraho (built around 1030 CE) feature a soaring shikhara that climbs to 31 metres. This wasn't just height; it was a representation of the cosmic mountain, Meru—the home of the gods. It shows a huge leap in the complexity of vertical design. You can dive deeper into the progression of India's architectural forms to see this evolution yourself.

This growth in height and detail turned the temple elevation into a three-dimensional canvas, covered from top to bottom in sculptures and carvings that told epic mythological stories.

The elevation of a temple was its narrative. Every tier, every carving, and every proportional relationship was a verse in a larger story about the universe and humanity's place within it. It was architecture as a sacred text.

The Lasting Legacy on Modern Design

This rich history of using elevations to tell a story didn't just fade away. The core principles of proportion, rhythm, and symbolic height have been handed down through generations of builders and designers.

You can still see the influence of these historical approaches on contemporary Indian architects today:

• Symbolic Massing: Many modern buildings use their vertical shape and overall bulk to create a sense of importance and presence, just like the grand historical structures did.

• Façade Storytelling: The patterns, textures, and materials on a modern building’s face often tell a story about its purpose, its cultural roots, or even its approach to sustainability.

• Human Scale and Grandeur: Architects still play with that classic design tension: creating awe-inspiring elevations while including elements that connect with people on a human level—a technique perfected in ancient temple design.

The story of elevations in Indian architecture is a powerful reminder that these drawings are so much more than lines on a page. They are the expressions of culture, belief, and history, built right into the walls of the subcontinent’s most incredible structures.

Deconstructing Elevations in Iconic Indian Buildings

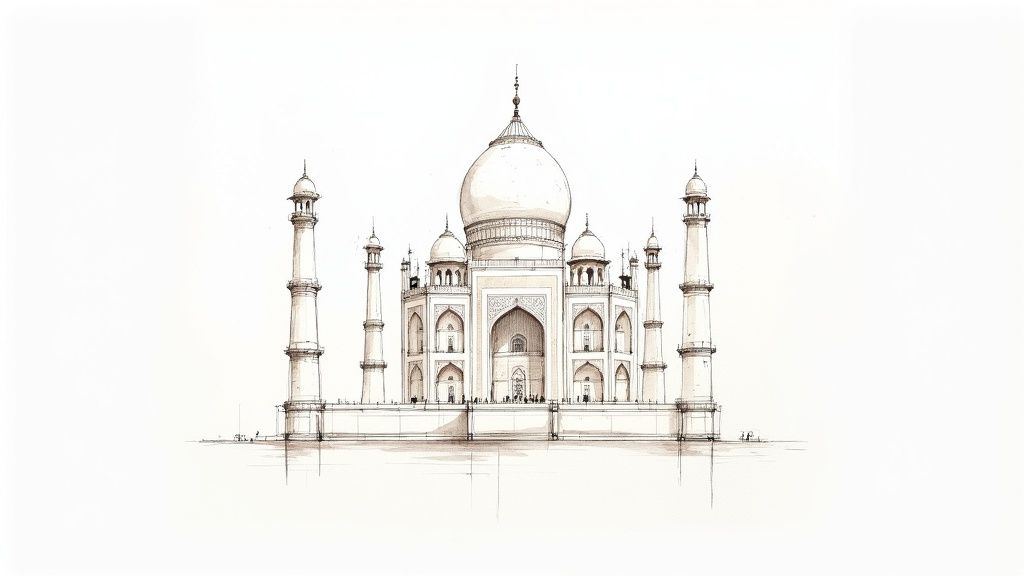

Theory is one thing, but seeing how elevations in architecture play out in a real-world masterpiece? That’s when the concepts really hit home. And there’s no better place to look than the Taj Mahal, a true icon whose beauty is a direct result of incredible elevation design. Let's break down its façade to see how symmetry, proportion, and materials all work together to create something that feels both massive and surprisingly light.

The entire structure is a masterclass in balance. The front elevation is perfectly symmetrical, split right down a central axis. This creates an instant feeling of harmony and stability—a powerful visual statement of perfection that has wowed people for centuries.

Engineering Grandeur and Lightness

One of the most amazing things about the Taj Mahal is how it seems to float, even though it’s enormous. This isn't an accident; it's the result of some very clever design tricks working together.

First off, the main building sits on a raised platform, lifting it about 6 metres above the gardens. This simple move gives it a commanding presence and makes it feel even taller. The massive central dome, which climbs to about 73 metres, is perfectly framed by four slender minarets.

These minarets, each around 40 metres tall, aren't just for show. Mughal architecture in India beautifully blends imperial symbolism with smart engineering. For example, the minarets are actually built to lean slightly outwards. Why? To ensure that if an earthquake ever struck, they would fall away from the main tomb, protecting it from damage. That's some serious foresight. You can dive deeper into the evolution of architecture in India to see more of this genius blend of art and science.

The Taj Mahal’s elevation is a masterclass in visual hierarchy. The central dome is the undeniable focal point, while the flanking minarets and lower arched recesses guide the eye and create a rhythmic, balanced composition.

The choice of material is the final, brilliant touch. The gleaming white Makrana marble isn't just pretty; it plays with light. The look of the building completely changes throughout the day, shifting from a soft pink at sunrise, to a brilliant white at noon, and a warm gold at sunset.

This almost magical quality is pushed even further by the intricate pietra dura inlay, where semi-precious stones are carefully set into the marble. This detailed work adds a layer of delicate craftsmanship that breaks up the huge white surfaces, inviting you to look closer. If you're inspired to create similar stunning effects in your own work, getting a solid grip on the fundamentals of architecture elevation design is the perfect place to start.

When you really break down the Taj Mahal's elevations, you see that nothing was accidental. Every single element—from the perfect symmetry to the subtle lean of the minarets and the choice of marble—was part of a grand plan to create an experience that is both awe-inspiring and deeply moving.

Modern Elevations and Their Social Impact

Architecture has always told stories, but as the world changed, so did the stories buildings needed to tell. Instead of just celebrating gods and kings, modern elevations in architecture started to get their hands dirty, tackling real-world problems like crowded cities, a changing climate, and how we live together.

This shift was especially powerful in places like post-independence India, where architects had the massive job of building a new national identity from the ground up.

Pioneers like the great Charles Correa really understood this. He saw that a building's face—its elevation—wasn't just for show. It was a powerful tool for shaping how people connect and live. The focus moved away from imposing, monumental structures towards designs that felt more human, that invited interaction, and that worked with the local environment, not against it. It was a total rethink, moving from pure aesthetics to practical problem-solving for ordinary people.

Suddenly, buildings started to breathe. Their elevations weren't just static walls anymore; they became a living, breathing interface between the privacy of home and the energy of the street, actively encouraging community to flourish.

Building Communities from the Outside In

You can see this new way of thinking loud and clear in the government housing projects that popped up in the second half of the 20th century. Take a look at the Tara Group Housing in New Delhi, designed by Correa back in 1978. He used a clever double-story format for its 160 units, keeping the heights around 6 to 8 metres. This masterstroke managed to create density without making people feel overwhelmed, giving families functional outdoor terraces and sparking a real sense of community.

This idea grew and evolved. By the time of the 1982 Asiad Village, architects were using staggered elevations of 2 to 3 stories to weave in shared spaces for socialising and to make the buildings more comfortable in the local climate. Discover more insights about the history of post-independence architecture in India on archdaily.com.

Elevations became a powerful tool for social engineering. By breaking down large building masses into smaller, staggered forms with shared terraces and courtyards, architects could create vibrant, interactive neighbourhoods instead of anonymous housing blocks.

These projects were living proof that a well-designed elevation could genuinely make life better. By thinking about simple things like sun, wind, and how people might bump into each other for a chat, architects used the building's skin to create homes that were cooler, more comfortable, and simply better places to live. That legacy is still with us today, a constant reminder that an elevation can do more than just look good—it can do good, shaping our society one façade at a time.

Bringing Your Elevation Designs to Life

For years, traditional 2D drawings were the only language architects had to communicate their vision. But let's be honest, they only tell part of the story. To really get a feel for how elevations in architecture will look and feel in the real world, you have to close the gap between flat lines on a page and a tangible, three-dimensional building.

This is exactly where modern rendering technology steps in and completely changes the game.

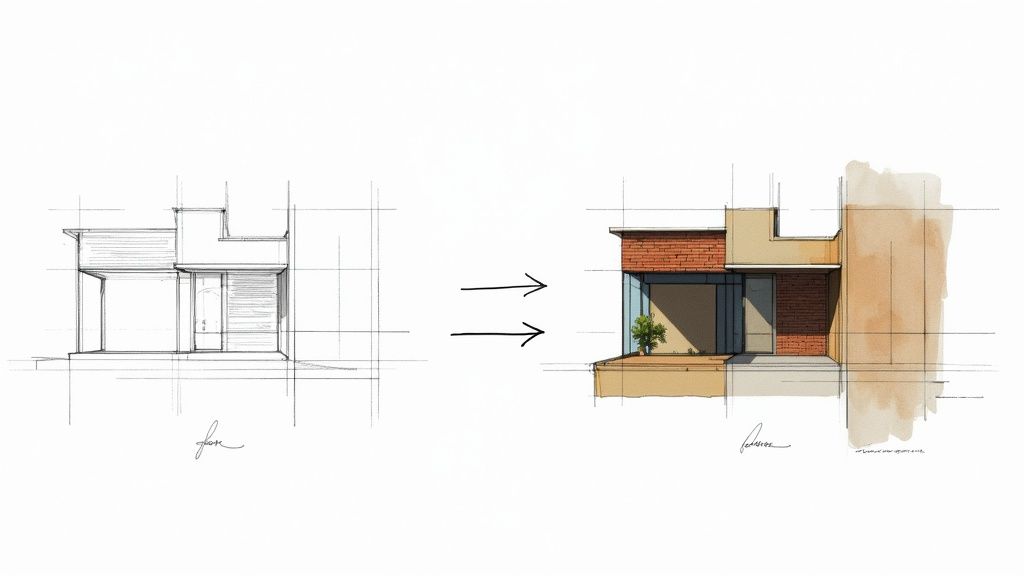

Tools like Vibe3D are what we now use to turn those technical drawings into visuals so realistic you could almost touch them. Instead of trying to get a client to imagine how the afternoon sun will warm up the brickwork, you can actually show them. This whole process is called photorealistic rendering, and it’s a massive win for everyone involved in a project.

Why Photorealistic Renders Matter

Let’s face it: most people find it really hard to visualise a finished building from a blueprint. A photorealistic render completely takes the guesswork out of the equation. It offers a true-to-life preview that helps in a few key ways:

• Boosts Client Confidence: When clients can see exactly what they’re paying for, they feel far more confident and excited about their decisions.

• Nails Down Material Selection: You can digitally "test drive" different materials. Will that dark wood siding look better than the light brick? Now you can compare them in realistic lighting before ordering a single thing.

• Spots Problems Early: A realistic render can shine a spotlight on awkward details or design clashes that are easy to miss on a 2D drawing. Catching these early saves a ton of time and money down the line.

A photorealistic render turns an abstract idea into something you can almost walk into. It’s the closest you can get to experiencing a building before a single brick is laid, making sure the dream matches the final result.

Creating these compelling visuals is a huge part of being a modern designer. If you want to get better at it, our guide on how to render in SketchUp is packed with practical steps to level up your workflow.

Of course, once you’ve created these incredible renders, you need to show them off properly. Learning the art of building a standout architecture portfolio is the next logical step to showcase your skills and land new clients. In the end, it’s these vibrant, lifelike images that sell your vision and get everyone, from the client to the builder, on the exact same page.

Got Questions About Architectural Elevations? We've Got Answers

Even after you've got the basics down, a few questions always seem to pop up about elevations. It's completely normal. Let's tackle some of the most common ones so you can talk about elevations in architecture like a seasoned pro.

Elevation vs. Perspective: What's the Real Difference?

It’s so easy to get these two mixed up, but they're fundamentally different and have completely different jobs.

Think of an elevation as a perfectly flat, head-on photograph of one side of a building. It's a 2D drawing with no distortion at all. This is crucial for construction because it shows the true, measurable dimensions of every feature.

A perspective drawing, however, is all about realism. It’s a 3D view that shows a building how we'd actually see it in real life, with objects getting smaller as they get further away. It looks great, but you can't pull a tape measure to it.

What Absolutely Must Be on an Elevation Drawing?

An elevation is a builder's roadmap, so it needs to be packed with essential information. Every elevation drawing should clearly spell out:

• The finished materials for the exterior (e.g., brick, wood siding, stucco).

• Vertical height dimensions, showing floor levels and roof lines.

• The exact style and placement of every window and door.

• Details like roof pitches and the size of overhangs.

• How the different floor levels stack up against each other.

At its core, an elevation's job is to communicate two things: what the building will look like when it's finished, and all the key vertical measurements needed to get it built. It bridges the gap between the design dream and the construction reality.

Why Do We Name Elevations After Compass Points?

Calling elevations North, South, East, and West isn't just for show—it's a simple, brilliant way to keep everyone oriented.

This naming system locks the building's position onto the site plan, so there's never any confusion about which side is which. This is incredibly important for things like understanding sun paths for natural light, accounting for wind, and seeing how the building sits in its environment.

If you’re just starting to think about your building's main face, knowing its orientation is step one. Our guide on creating a simple home front elevation is a great place to begin.
